Invicta 3 Type B Distribution Boards
250A Incoming 63A Outgoing

Here you will find, features and benefits, image gallery, part numbers and descriptions, accessories, technical line drawings as well as dimensions for our 250A Invicta 3 Type B Distribution Boards

Features & Benefits

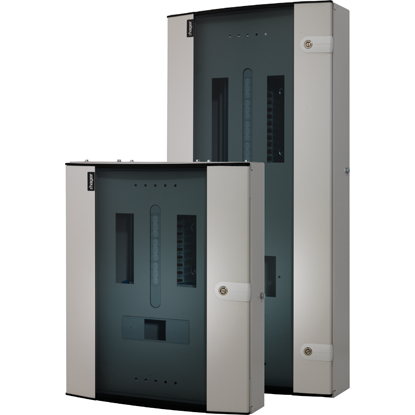

Click to zoom

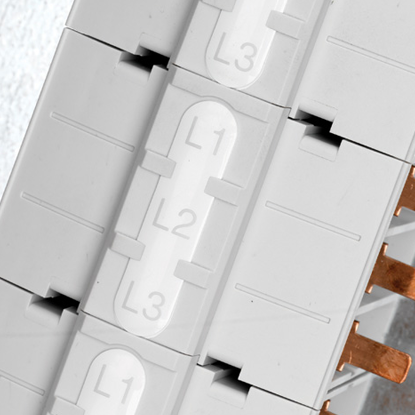

Click to zoom

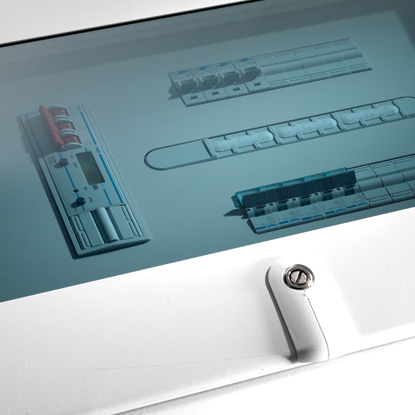

Click to zoom

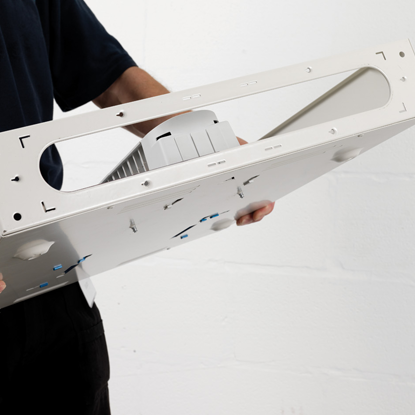

Click to zoom
Click to zoom
Click to zoom
Click to zoom
Click to zoom

Descriptions & Part Numbers

Invicta 3 (250A Incoming 63A Outgoing)

DescriptionCat ref.
Plain door		Cat ref.
Glazed door
8 Triple Pole Ways
JK208B
JK208BG
12 Triple Pole Ways
JK212B
JK212BG
16 Triple Pole Ways
JK216B
JK216BG
18 Triple Pole Ways
JK218B
JK218BG
24 Triple Pole Ways
JK224B
JK224BG

250A Incomer Kits (note: these incomer kits will only fit the 250A board(s))

DescriptionCat ref.
3 Pole 250A MCCB Incomer Kit (fits within distribution board)
JK22503M
4 Pole 250A MCCB Incomer Kit (fits within distribution board)
JK22504M
3 Pole 250A Switch Disconnector Incomer Kit (fits within distribution board)
JK22503S
4 Pole 250A Switch Disconnector Incomer Kit (fits within distribution board)
JK22504S
4 Pole 250A Direct Connection Kit (fits within distribution board)
JK22504D
4 Pole 160A Contactor Incomer Kit includes Switch Disconnector (fits below distribution board) ¹
JK21604C ¹
3 Pole 125A MCCB Incomer Kit (fits within distribution board)
JK21253M
4 Pole 125A MCCB Incomer Kit (fits within distribution board)
JK21254M


¹ A 300mm space is required below the board for fitting.

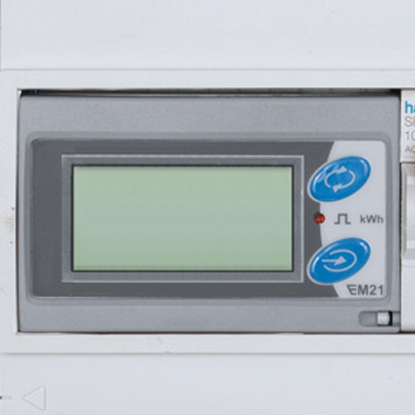

250A Meter Packs (note: these incomer kits will only fit the 250A board(s))

DescriptionCat ref.
Digital Multifunction Meter Pack Pulsed
JK240MP
Digital Multifunction Meter Pack ModBus
JK240MJ
kWh Meter Pack Pulsed
JK242BA


These kits fit into the main distribution board.



Each meter pack contains:
Meter, 3 Pole CT Block, 3 x Fuses & Carriers on DIN rail, Wiring Loom, Incoming Shroud, Instructions (including torque settings for electrical connections).


Dual Meter 250A Incomer Kits (note: these dual meter incomer kits will only fit the 250A board(s))

DescriptionCat ref.
Dual kWh Meter Pack 250A Incomer Pulsed
JKD250BKWP
Dual Multifunction Meter Pack 250A Incomer Pulsed
JKD250BMP
Dual Multifunction Meter Pack 250A Incomer ModBus
JKD250BMM


Each meter pack contains:
Meter, 3 Pole CT Block, 3 x Fuses & Carriers on DIN rail, Wiring Loom, Incoming Shroud, Instructions (including torque settings for electrical connections), Off Set Incoming Links, Neutral Connection Block and Extension Box with Glazed Doors.


DIN Extension Boxes for 250A Primary Boards

DescriptionNumber
of Rows		Number of DIN Module WaysCat ref.
Plain door		Cat ref.
Glazed door
250A DIN Extension Box
1
16
JK216E
JK216EG
250A DIN Extension Box
2
32
JK232E
JK232EG

Cable Spreader Boxes for 250A Primary Boards

DescriptionCat ref.
Small Cable Spreader Box *
JK201SE
Large Cable Spreader Box *
JK202LE


* no door included (see below for door kit).


Optional Door Kits for Cable Spreader Boxes (above)

DescriptionCat ref.
Small Cable Spreader Box Door Kit
JK101DK
Large Cable Spreader Box Door Kit
JK102DK

Side DIN Boxes for 250A Primary Boards

DescriptionNumber
of Rows		Number of DIN
Module Ways		Cat ref.
Glazed door
80 Way Side DIN Box for JK208B
5
80
JK208BDFG
80 Way Side DIN Box for JK212B
5
80
JK212BDFG
96 Way Side DIN Box for JK216B
6
96
JK216BDFG
112 Way Side DIN Box for JK218B
7
112
JK218BDFG
128 Way Side DIN Box for JK224B
8
128
JK224BDFG

Side Extension Boxes for 250A Primary Boards

DescriptionCat ref.
Plain door
8 Way Side Extension Box for JK208B Full Width
JK208BSF
12 Way Side Extension Box for JK212B Full Width
JK212BSF
16 Way Side Extension Box for JK216B Full Width
JK216BSF
18 Way Side Extension Box for JK218B Full Width
JK218BSF
24 Way Side Extension Box for JK224B Full Width
JK224BSF

Half Width Side Extension Boxes for 250A Primary Boards

DescriptionCat ref
8 Way Half Width Extension Box
JK208BSH
12 Way Half Width Extension Box
JK212BSH
16 Way Half Width Extension Box
JK216BSH
18 Way Half Width Extension Box
JK218BSH
24 Way Half Width Extension Box
JK224BSH
Small Half Width Filler Box
JK201BSH


Doors are not available.


Accessories - Invicta 3 250A

DescriptionCat ref.
Door Locking Kit
JK222PK
Spare Label Pack - All sizes (one pack)
JKLABELPACK
Single Phasing Kit
JK250BSP
Touch Up Paint
JF95A

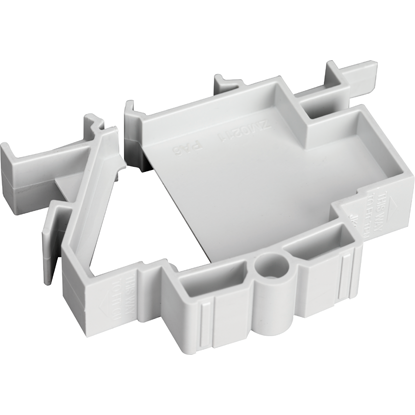

Single Pole Busbar Blank
JK01B
JK1/2 Horizontal or Vertical Mechanical Connection Kit
JK100HK
Brass Gland Plate - 2.0mm
JK2PLATEB

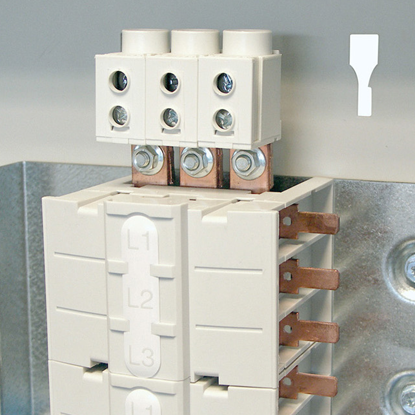

100A Top Tap Off Kit
JK100TAP

Spares - Invicta 3 250A

DescriptionCat ref.

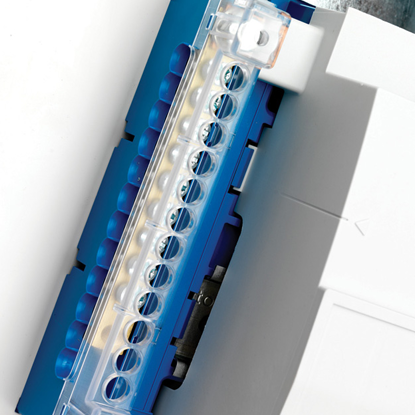

JK1/2 Neutral Clear Shroud
JK1/NEUTRALSHROUD
JK1/2 Busbar Stack Top Shroud
JK1/2TOPSHROUD
JK1/2 Main Incomer Shroud
JK2/INCOMERSHROUD
Spare Gland Plate including Drill Markings - 1.2mm
JK2PLATEM

Invicta 3 Distribution Boards 250A Dimensions

250A Primary Boards
Invicta 3 Distribution Board 250A Primary Board & Contactor Incomer Line Drawing
 Height
(mm)		Width
(mm)		Depth
(mm)		Fixing Centres
(mm) A		Fixing Centres
(mm) B		Fixing Centres
(mm) C
JK208B/BG
950
465
165.5
365
100
750
JK212B/BG
1100
465
165.5
365
100
900
JK216B/BG
1250
465
165.5
365
100
1050
JK218B/BG
1400
465
165.5
365
100
1200
JK224B/BG
1550
465
165.5
365
100
1350
Contactor Incomers
 Dimensions (mm)
Height		Dimensions (mm)
Width		Dimensions (mm)
Depth
JK10634C
350
465
165.5
JK11004C
450
465
234.5
JK21604C
450
465
234.5
250A Side DIN Boxes
Invicta 3 Distribution Board 250A Side DIN Boxes Line Drawing
 Dimensions
(mm) Height		Dimensions
(mm) Width		Dimensions
(mm) Depth		Fixing Centres
(mm) A		Fixing Centres
(mm) B		Fixing Centres
(mm) C
JK208BDFG
950
465
165.5
365
100
750
JK212BDFG
1100
465
165.5
365
100
900
JK216BDFG
1250
465
165.5
365
100
1050
JK218BDFG
1400
465
165.5
365
100
1200
JK224BDFG
1550
465
165.5
365
100
1350
250A DIN Extension Boxes
Invicta 3 Distribution Board 250A DIN Extension Boxes Line Drawing
 Dimensions
(mm) Height		Dimensions
(mm) Width		Dimensions
(mm) Depth		Fixing Centres
(mm) A		Fixing Centres
(mm) B		Fixing Centres
(mm) C
JK216E/EG
300
465
165.5
365
150
-
JK232E/EG
450
465
165.5
365
80
290
250A Cable Spreader Boxes
Invicta 3 Distribution Board 250A Cable Spreader Boxes Line Drawing
 Dimensions
(mm) Height		Dimensions
(mm) Width		Dimensions
(mm) Depth
(Without Door)		Dimensions
(mm) Depth
(With Door)		Fixing Centres
(mm) A		Fixing Centres
(mm) B		Fixing Centres
(mm) C
JK201SE
300
465
124.5
165.5
365
150
-
JK202LE
450
465
124.5
165.5
365
80
290
250A Side Extension Boxes
Invicta 3 Distribution Board 250A Side Extension Box Line Drawing
 Dimensions
(mm) Height		Dimensions
(mm) Width		Dimensions
(mm) Depth		Fixing Centres
(mm) A		Fixing Centres
(mm) B		Fixing Centres
(mm) C
JK208BSF
950
465
124.5
365
100
750
JK212BSF
1100
465
124.5
365
100
900
JK216BSF
1250
465
124.5
365
100
1050
JK218BSF
1400
465
124.5
365
100
1200
JK224BSF
1550
465
124.5
365
100
1350
250A Half Width Side Extension Boxes
Invicta 3 Distribution Board 250A Half Width Side Extension Box Line Drawing
 Dimensions
(mm) Height		Dimensions
(mm) Width		Dimensions
(mm) Depth		Fixing Centres
(mm) A		Fixing Centres
(mm) B		Fixing Centres
(mm) C
JK208BSH
950
232.5
124.5
170
100
750
JK212BSH
1100
232.5
124.5
170
100
900
JK216BSH
1250
232.5
124.5
170
100
1050
JK218BSH
1400
232.5
124.5
170
100
1200
JK224BSH
1550
232.5
124.5
170
100
1350
250A Dual Meter Incomer Kits

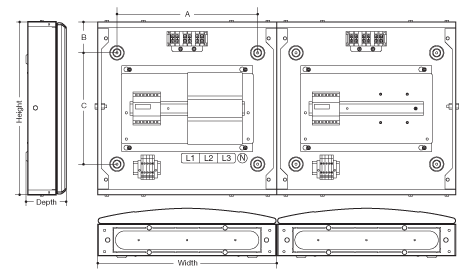

Invicta 3 Distribution Board 250A Dual Meter Incomer Kits Line Drawing
 Dimensions
(mm) Height		Dimensions
(mm) Width		Dimensions
(mm) Depth		Fixing Centres
(mm) A		Fixing Centres
(mm) B		Fixing Centres
(mm) C
JKD250BKWP
625
465
165.5
365
100
425
JKD250BKWM
625
465
165.5
365
100
425
JKD250BMP
625
465
165.5
365
100
425
JKD250BMM
625
465
165.5
365
100
425
