Invicta 3 Type B Distribution Boards
125A Incoming 63A Outgoing

Here you will find, features and benefits, image gallery, part numbers and descriptions, accessories, technical line drawings as well as dimensions for our 125A Invicta 3 Type B Distribution Boards

Features & Benefits

Click to zoom
Click to zoom
Click to zoom
Click to zoom
Click to zoom
Click to zoom
Click to zoom
Click to zoom

Descriptions & Part Numbers

Invicta 3 (125A Incoming 63A Outgoing)

DescriptionCat ref.
Plain door		Cat ref.
Glazed door
4 Triple Pole Ways
JK104B ¹
JK104BG ¹
6 Triple Pole Ways
JK106B ¹
JK106BG ¹
8 Triple Pole Ways
JK108B
JK108BG
12 Triple Pole Ways
JK112B
JK112BG
16 Triple Pole Ways
JK116B
JK116BG
18 Triple Pole Ways
JK118B
JK118BG
24 Triple Pole Ways
JK124B
JK124BG



¹ When fitting a meter pack a JK101SE (300mm) is required to provide additional incoming cable space.



125A Incomer Kits (note: these incomer kits will only fit the 125A board(s))

DescriptionCat ref.
3 Pole 100A Switch Disconnector Incomer Kit (fits within distribution board)
JK11003S
4 Pole 100A Switch Disconnector Incomer Kit (fits within distribution board)
JK11004S
3 Pole 125A Switch Disconnector Incomer Kit (fits within distribution board)
JK11253S
4 Pole 63A Contactor Incomer Kit includes Switch Disconnector
(fits below distribution board, 350mm high)
JK10634C ²
4 Pole 100A Contactor Incomer Kit includes Switch Disconnector
(fits below distribution board, 400mm high)
JK11004C ²
125A Direct Connection Kit (fits within distribution board)
JK11254D
4 Pole 63A 30mA RCCB Incomer Kit (fits within distribution board)
JK10634RH
4 Pole 100A 30mA RCCB Incomer Kit (fits within distribution board)
JK11004RH
4 Pole 100A 300mA RCCB Incomer Kit (fits within distribution board)
JK11004RL
4 Pole 100A 300mA Time Delayed RCCB Incomer Kit (fits within distribution board)
JK11004RLD
4 Pole 100A 100mA RCCB Incomer Kit (fits within distribution board)
JK11004RM
4 Pole 100A 100mA Time Delayed RCCB Incomer Kit (fits within distribution board)
JK11004RMD


² A 350/450mm space is required below the board for fitting.


125A Meter Packs (note: these incomer kits will only fit the 125A board(s))

DescriptionCat ref.
Digital Multifunction Meter Pack Pulsed
JK140MP
Digital Multifunction Meter Pack ModBus
JK140MJ
kWh Meter Pack Pulsed
JK142BA
(note: these meter packs will only fit the 125A board(s).
These kits fit into the main distribution board. (When fitting a meter pack to a JK104B(G) & JK106B(G), a JK101SE is required to provide additional incoming cable space).
For sub billing metering applications please contact our Technical Support Helpline 0870 607 6677.



Each meter pack contains:
Meter, 3 Pole CT Block, 3 x Fuses & Carriers on DIN rail, Wiring Loom, Incoming Shroud, Instructions (including torque settings for electrical connections).


125A Dual Metered Boards

DescriptionCat ref.
Glazed door
Composite Split Lighting / Power Metered Board 4 / 16
JKD1416B
Composite Split Lighting / Power Metered Board 8 / 12
JKD1812B

Data Logger

DescriptionCat ref.
ULog allows collection of data from up to 8 pulsed output meters JK107DL
allowing data to be analysed by a remote PC (.csv file output into
spreadsheets / database).
JK107DL
• Instant access and data logging plus 1 temperature input.

• Up to 8 pulsed inputs (CP1 - CP8).

• Transfer data via Ethernet, RS232/485.

• Logs up to 100 days of data from every 1 to 60 second intervals.

• DIN or direct fixing.

• 2 part terminals for easy conneciton.

• Works seamslessly on an Intranet with a fixed IP address.



*Plugged into a wall socket connected via the electrical mains.


Dual 125A Meter Incomer Kits (note: these incomer kits will only fit the 125A board(s))

DescriptionCat ref.
Dual kWh Meter Pack 125A Incomer Pulsed
JKD125BKWP
Dual Multifunction Meter Pack 125A Incomer Pulsed
JKD125BMP
Dual Multifunction Meter Pack 125A Incomer ModBus
JKD125BMM


Each fully assembled* meter pack contains:
Meter, 3 Pole CT Block, 3 x Fuses & Carriers on DIN rail, Wiring Loom, Incoming Shroud, Instructions (including torque settings for electrical connections), Off Set Incoming Links, Neutral Connection Block and Extension Box with Glazed Doors.



* distribution boards supplied separately to be assembled on site.


DIN Extension Boxes for 125A Primary Boards

DescriptionNumber
of Rows		Number of DIN
Module Ways		Cat ref.
Plain door		Cat ref.
Glazed door
125A DIN Extension Box
1
16
JK116E
JK116EG
125A DIN Extension Box
2
32
JK132E
JK132EG

Cable Spreader Boxes for 125A Primary Boards

DescriptionCat ref.
Small Cable Spreader Box *
JK101SE
Large Cable Spreader Box *
JK102LE


* no door included (see below for door kit).


Optional Door Kits for Cable Spreader Boxes (above)

DescriptionCat ref.
Small Cable Spreader Box Door Kit
JK101DK
Large Cable Spreader Box Door Kit
JK102DK

Side DIN Boxes for 125A Primary Boards

DescriptionNumber
of Rows		Number of DIN
Module Ways		Cat ref.
Glazed door
32 Way Side DIN Box for JK104B
2
32
JK104BDFG
32 Way Side DIN Box for JK106B
2
32
JK106BDFG
48 Way Side DIN Box for JK108B
3
48
JK108BDFG
64 Way Side DIN Box for JK112B
4
64
JK112BDFG
80 Way Side DIN Box for JK116B
5
80
JK116BDFG

Side Extension Boxes for 125A Primary Boards

DescriptionCat ref.
Plain door
4 Way Side Extension Box for JK104B Full Width
JK104BSF
6 Way Side Extension Box for JK106B Full Width
JK106BSF
8 Way Side Extension Box for JK108B Full Width
JK108BSF
12 Way Side Extension Box for JK112B Full Width
JK112BSF
16 Way Side Extension Box for JK1116B Full Width
JK116BSF

Half Width Side Extension Boxes for 125A Primary Boards

DescriptionCat ref.
4 Way Half Width Extension Box
JK104BSH
6 Way Half Width Extension Box
JK106BSH
8 Way Half Width Extension Box
JK108BSH
12 Way Half Width Extension Box
JK112BSH
16 Way Half Width Extension Box
JK116BSH
Small Half Width Filler Box
JK101BSH


Doors are not available.


Accessories - Invicta 3 125A

DescriptionCat ref.
Door Locking Kit
JK222PK
Spare Label Pack - All sizes (one pack)
JKLABELPACK
Single Phasing Kit
JK125BSP
Touch Up Paint
JF95A
Single Pole Busbar Blank
JK01B
JK1/2 Horizontal or Vertical Mechanical Connection Kit
JK100HK
Brass Gland Plate - 2.0mm
JK1PLATEB
100A Top Tap Off Kit
JK100TAP

Spares - Invicta 3 125A

DescriptionCat ref.
JK1/2 Neutral Clear Shroud
JK1/NEUTRALSHROUD
JK1/2 Busbar Stack Top Shroud
JK1/2TOPSHROUD
JK1/2 Main Incomer Shroud
JK1/INCOMERSHROUD
Spare Gland Plate including Drill Markings - 1.2mm
JK1PLATEM

Invicta 3 Distribution Boards 125A Dimensions

125A Primary Boards
 Height
(mm)		Width
(mm)		Depth
(mm)		Fixing Centres
(mm) A		Fixing Centres
(mm) B		Fixing Centres
(mm) C
JK104B/BG
500
465
132.5
365
100
300
JK106B/BG
550
465
132.5
365
100
350
JK108B/BG
625
465
132.5
365
100
425
JK112B/BG
850
465
132.5
365
100
650
JK116B/BG
950
465
132.5
365
100
750
JK118B/BG
1100
465
132.5
365
100
900
JK124B/BG
1250
465
132.5
365
100
1050
Contactor Incomers
 Dimensions (mm)
Height		Dimensions (mm)
Width		Dimensions (mm)
Depth
JK10634C
350
465
165.5
JK11004C
450
465
234.5
JK21604C
450
465
234.5
125A Side DIN Boxes
Invicta 3 Distribution Board 125A Side DIN Boxes Line Drawing
 Dimensions
(mm) Height		Dimensions
(mm) Width		Dimensions
(mm) Depth		Fixing Centres
(mm) A		Fixing Centres
(mm) B		Fixing Centres
(mm) C
JK104BDFG
500
465
132.5
365
100
300
JK106BDFG
550
465
132.5
365
100
350
JK108BDFG
625
465
132.5
365
100
425
JK112BDFG
850
465
132.5
365
100
650
JK116BDFG
950
465
132.5
365
100
750
125A DIN Extension Boxes
Invicta 3 Distribution Board 125A DIN Extension Boxes Line Drawing
 Dimensions
(mm) Height		Dimensions
(mm) Width		Dimensions
(mm) Depth		Fixing Centres
(mm) A		Fixing Centres
(mm) B		Fixing Centres
(mm) C
JK116E/EG
300
465
132.5
365
150
-
JK132E/EG
450
465
132.5
365
80
290
125A Cable Spreader Boxes
Invicta 3 Distribution Board 125A Cable Spreader Boxes Line Drawing
 Dimensions
(mm) Height		Dimensions
(mm) Width		Dimensions
(mm) Depth
(Without Door)		Dimensions
(mm) Depth
(With Door)		Fixing Centres
(mm) A		Fixing Centres
(mm) B		Fixing Centres
(mm) C
JK101SE
300
465
91.5
132.5
365
150
-
JK102LE
450
465
91.5
132.5
365
80
290
125A Side Extension Boxes
Invicta 3 Distribution Board 125A Side Extension Box Line Drawing
 Dimensions
(mm) Height		Dimensions
(mm) Width		Dimensions
(mm) Depth		Fixing Centres
(mm) A		Fixing Centres
(mm) B		Fixing Centres
(mm) C
JK104BSF
500
465
91.5
365
100
300
JK106BSF
550
465
91.5
365
100
350
JK108BSF
625
465
91.5
365
100
425
JK112BSF
850
465
91.5
365
100
650
JK116BSF
950
465
91.5
365
100
750
125A Half Width Side Extension Boxes
Invicta 3 Distribution Board 125A Half Width Side Extension Box Line Drawing
 Dimensions
(mm) Height		Dimensions
(mm) Width		Dimensions
(mm) Depth		Fixing Centres
(mm) A		Fixing Centres
(mm) B		Fixing Centres
(mm) C
JK104BSH
500
232.5
91.5
170
100
300
JK106BSH
550
232.5
91.5
170
100
350
JK108BSH
625
232.5
91.5
170
100
425
JK112BSH
850
232.5
91.5
170
100
650
JK116BSH
950
232.5
91.5
170
100
750
125A Dual Meter Incomer Kits
Invicta 3 Distribution Board 125A Dual Meter Incomer Kits Line Drawing
 Dimensions
(mm) Height		Dimensions
(mm) Width		Dimensions
(mm) Depth		Fixing Centres
(mm) A		Fixing Centres
(mm) B		Fixing Centres
(mm) C
JKD125BKWP
450
465
132.5
365
80
290
JKD125BKWM
450
465
132.5
365
80
290
JKD125BMP
450
465
132.5
365
80
290
JKD125BMM
450
465
132.5
365
80
290
125A Rated Metered Boards

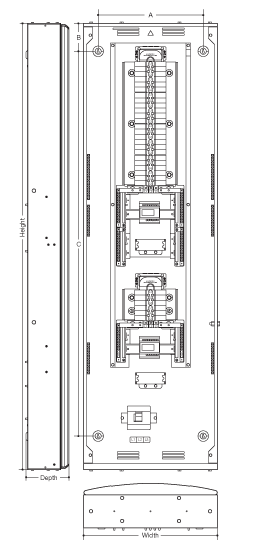

Invicta 3 Distribution Board 125A Rated Metered Boards Line Drawing
 Dimensions
(mm) Height		Dimensions
(mm) Width		Dimensions
(mm) Depth		Fixing Centres
(mm) A		Fixing Centres
(mm) B		Fixing Centres
(mm) C
JKD1416B
1550
465
165.5
365
100
1350
JKD1812B
1550
465
165.5
365
100
1350
